Color 1 |
Glossy Picton Blue |
Color 2 |
- |
Frame |
6061 aluminium, QR, rack / fender mounts, 68 mm BSA BB shell |
Fork |
6061 aluminium, QR, fender / rack / triple cage mounts, internal hub dynamo cable routing |

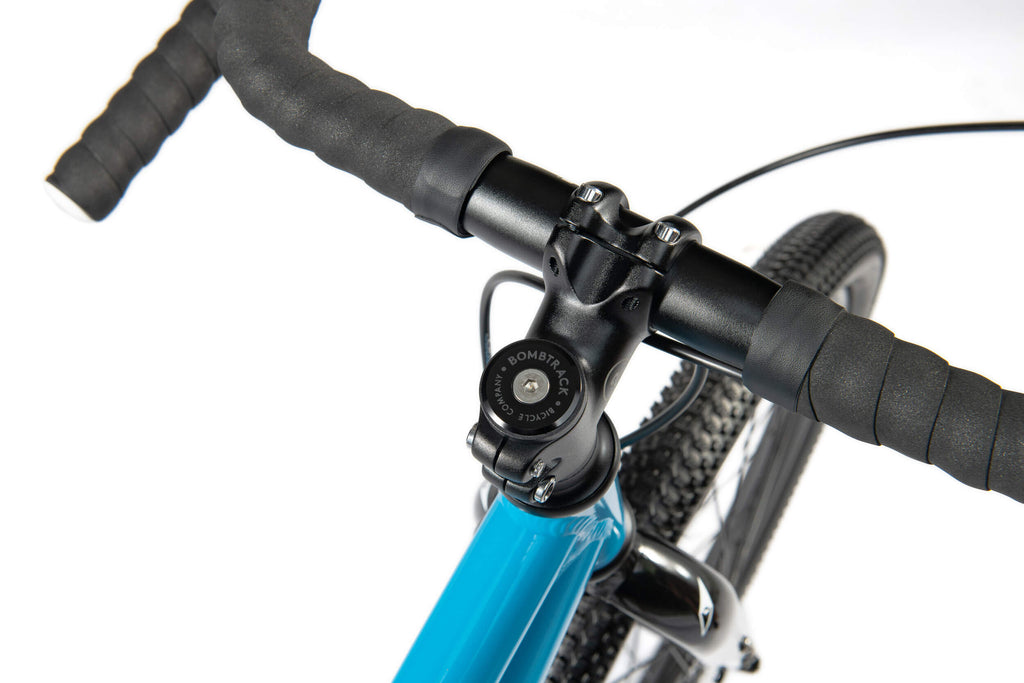

Handlebar |
BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
Grips |
BOMBTRACK CONTROL bar tape |
Stem |
BOMBTRACK WANDER forged aluminium stem, +17° |
Headset |
NECO H282 sealed external aheadset, 1.1/8'' |
Levers |
MICROSHIFT ADVENT SB-M090 dual control lever mechanic |
Shifter |
MICROSHIFT ADVENT SB-M090 dual control lever 1 x 9 |
Brakes |
TEKTRO MIRA F / LYRA R mechanic disc brake with 160 mm F / 140 mm R rotors |

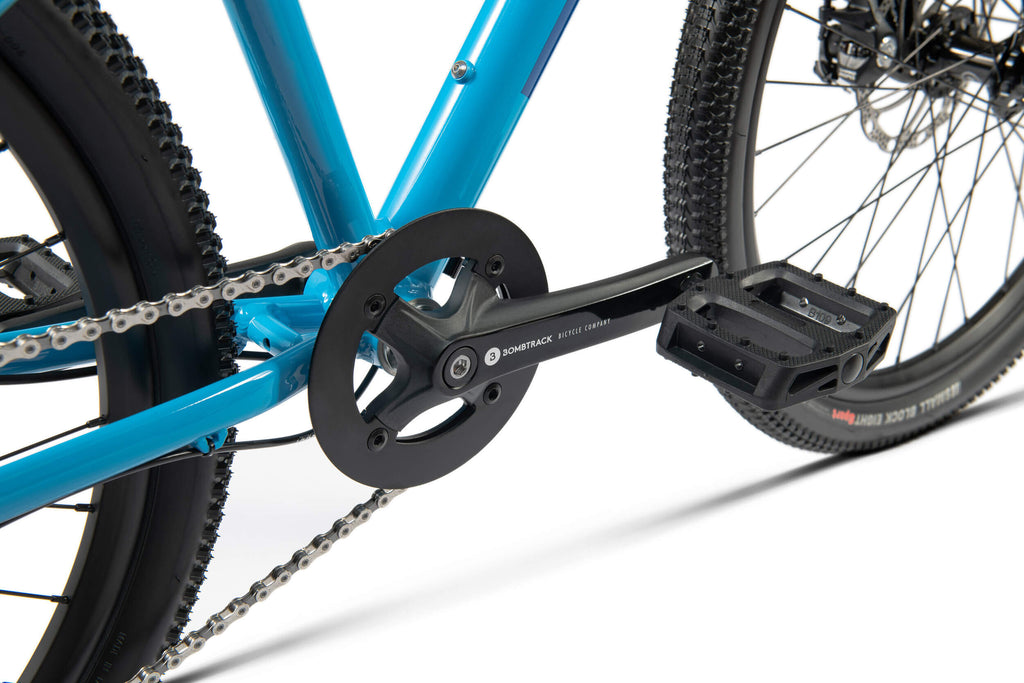

Crankset |
BOMBTRACK MACH square taper crank |
BB |
BSA sealed BB, 118 mm, square taper |
Pedals |
WELLGO B109N flat pedal |
Chain |
KMC X9 chain, 1/2'' x 11/128'', 98L |
Chainring |
Forged steel, narrow wide, 32 T |
Cassette |
MICROSHIFT CS-H093 9-speed, 11 - 42 T |
Front derailleur |
- |
Rear derailleur |
MICROSHIFT RD-M6195M, clutch |

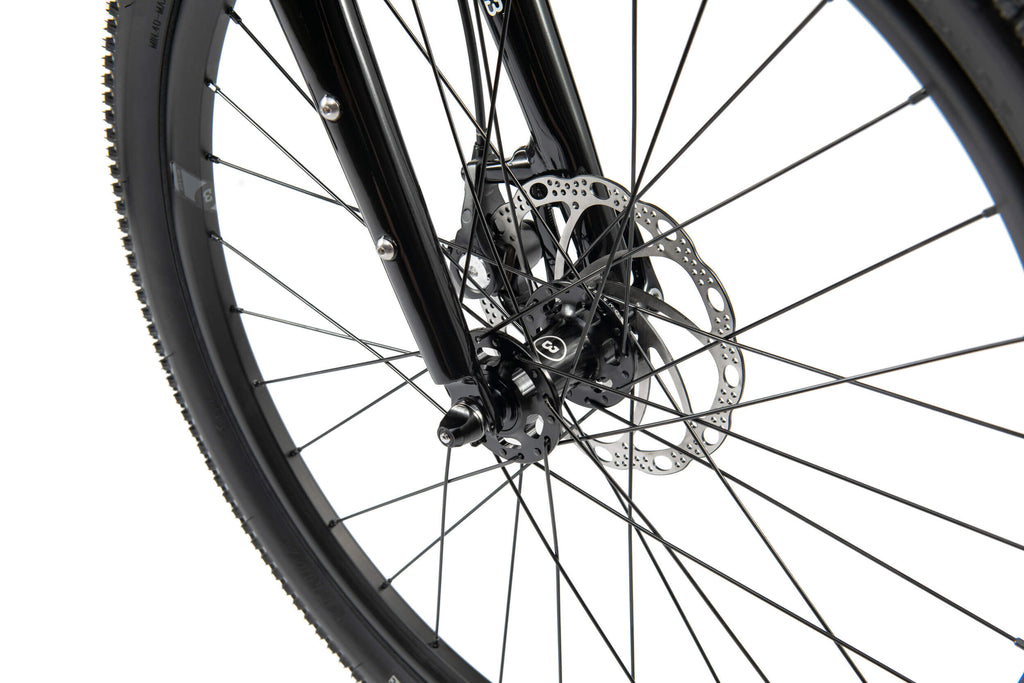

Front hub |
BOMBTRACK ARC sealed hub, 6-bolt disc, hex key skewer |
Rear hub |
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc, hex key skewer |
Through axle |
- |
Front rim |
BOMBTRACK TX20 double wall, i19, 32h |
Rear rim |
BOMBTRACK TX20 double wall, i19, 32h |

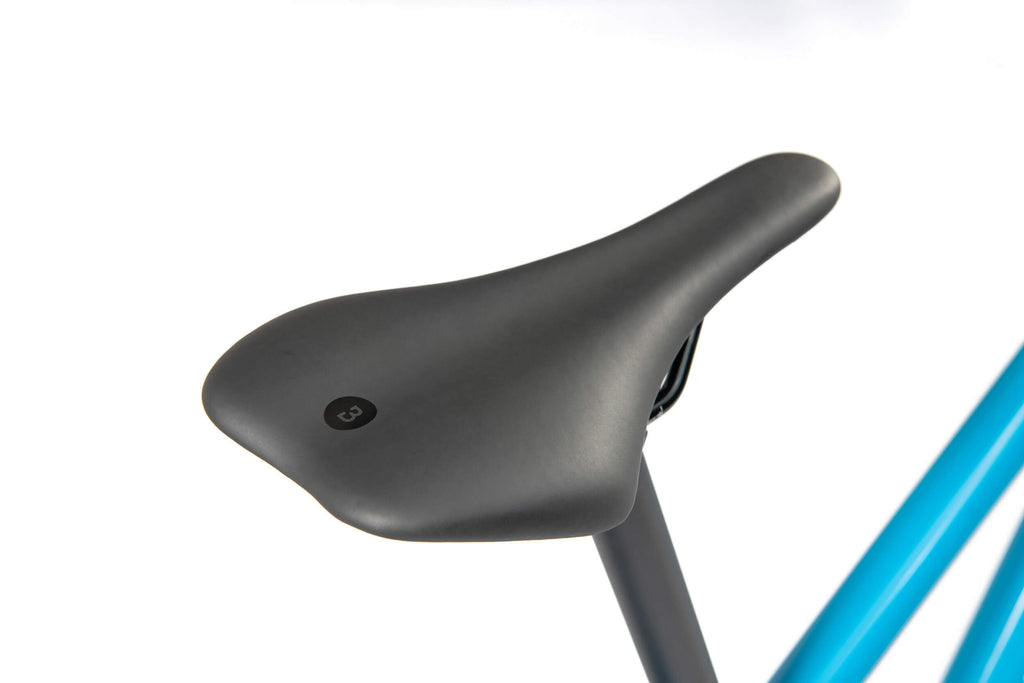

Saddle |
BOMBTRACK DRIFT SADDLE |
Seat post |
BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 415 mm |
Seat clamp |
BOMBTRACK ORIGIN forged aluminium seat clamp, 31.8 mm |
Front tyre |
KENDA SMALL BLOCK EIGHT, 24" x 1.95" |
Rear tyre |
KENDA SMALL BLOCK EIGHT, 24" x 1.95" |
Fender |
- |
Rack |
- |
Kickstand |
- |
Light |
- |
Weight |
10.9 kg (size M) |
Weight frameset |
1640 g frame (size XXS, incl. hanger) / 810 g fork (300 mm steerer) |
Maximum rider weight |
90 kg incl. luggage |
ASTM riding condition |
2 |
