| Color 1 |
Glossy Picton Blue |
| Color 2 |
- |
| Frame |
6061 aluminium, QR, rack / fender mounts, 68 mm BSA BB shell |
| Fork |
6061 aluminium, QR, fender / rack / triple cage mounts,
internal hub dynamo cable routing |
| Handlebar |
BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
| Grips |
BOMBTRACK CONTROL bar tape |

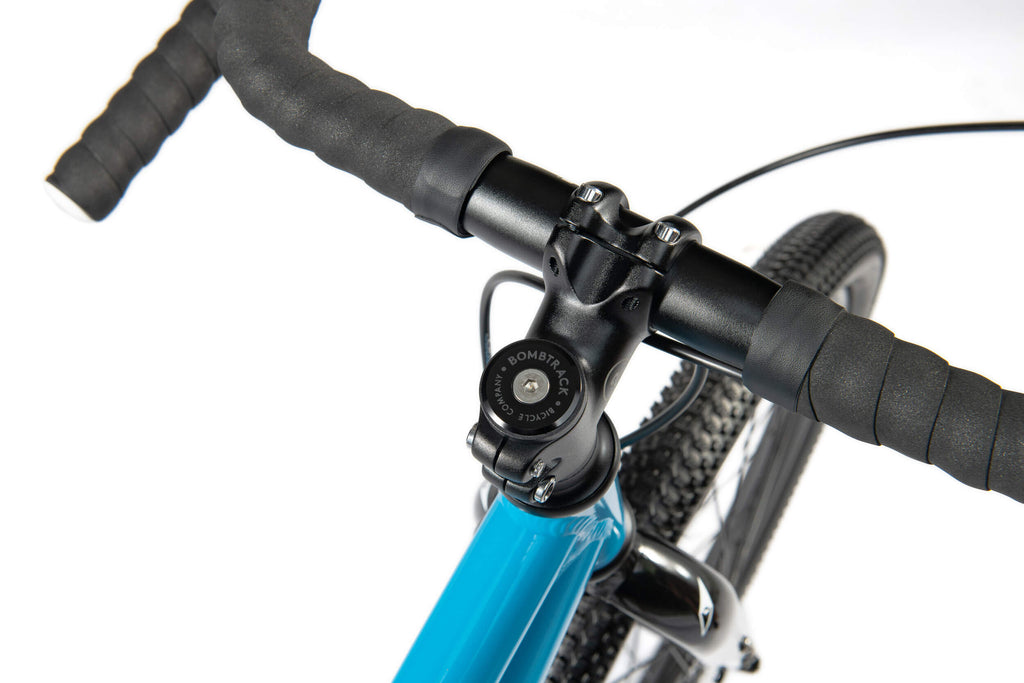

| Stem |
BOMBTRACK WANDER forged aluminium stem, +17° |
| Headset |
NECO H282 sealed external aheadset, 1.1/8'' |
| Levers |
MICROSHIFT ADVENT SB-M090 dual control lever mechanic |
| Shifter |
MICROSHIFT ADVENT SB-M090 dual control lever 1 x 9 |
| Brakes |
TEKTRO MIRA F / LYRA R mechanic disc brake with 160 mm F /
140 mm R rotors |
| Crankset |

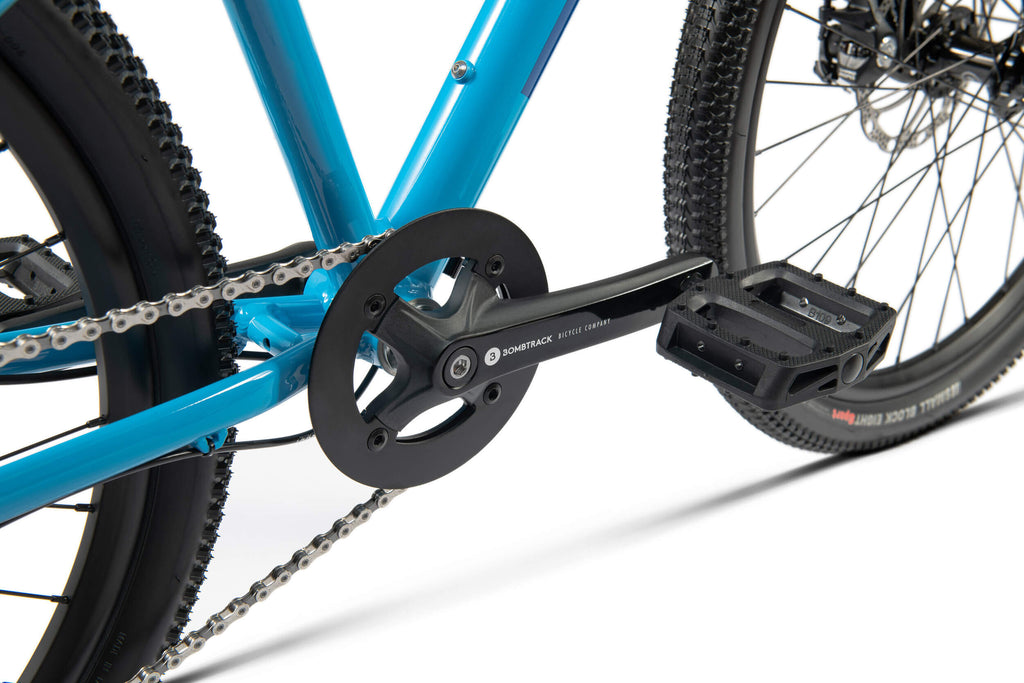

BOMBTRACK MACH square taper crank |
| BB |
BSA sealed BB, 118 mm, square taper |
| Pedals |
WELLGO B109N flat pedal |
| Chain |
KMC X9 chain, 1/2'' x 11/128'', 98L |
| Chainring |
Forged steel, narrow wide, 32 T |
| Cassette |
MICROSHIFT CS-H093 9-speed, 11 - 42 T |
| Front derailleur |
- |
| Rear derailleur |
MICROSHIFT RD-M6195M, clutch |

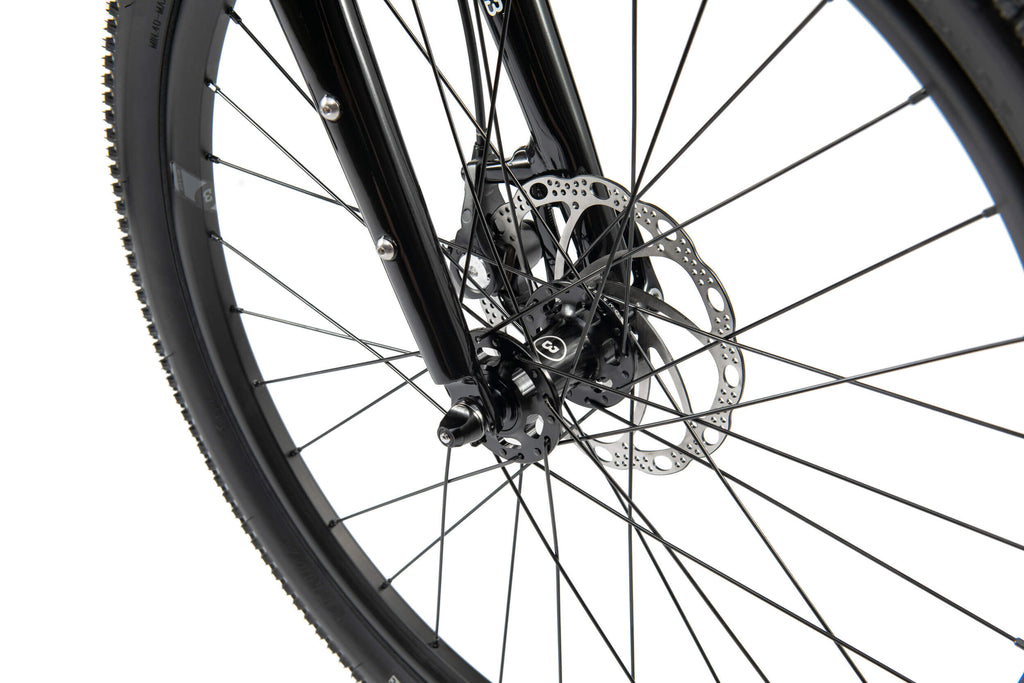

| Front hub |
BOMBTRACK ARC sealed hub, 6-bolt disc, hex key skewer |
| Rear hub |
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc, hex key skewer |
| Through axle |
- |
| Front rim |
BOMBTRACK TX20 double wall, i19, 32h |
| Rear rim |
BOMBTRACK TX20 double wall, i19, 32h |
| Saddle |

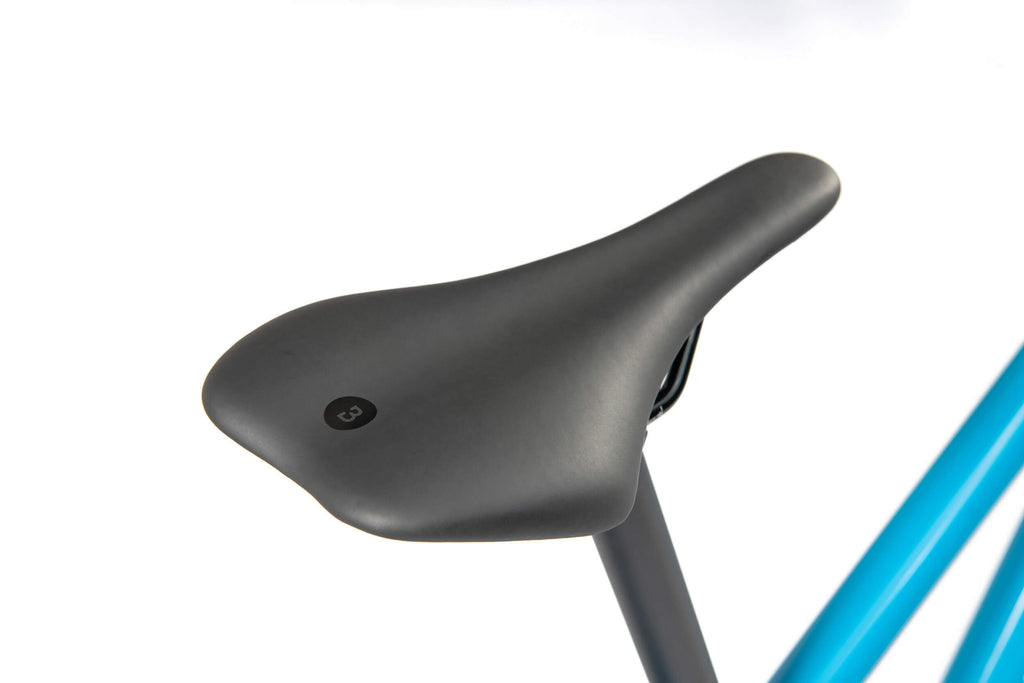

BOMBTRACK DRIFT SADDLE |
| Seat post |
BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 415 mm |
| Seat clamp |
BOMBTRACK ORIGIN forged aluminium seat clamp, 31.8 mm |
| Front tyre |
KENDA SMALL BLOCK EIGHT, 24" x 1.95" |
| Rear tyre |
KENDA SMALL BLOCK EIGHT, 24" x 1.95" |
| Fender |
- |
| Rack |
- |
| Kickstand |
- |
| Light |
- |
| Weight |
10.9 kg (size M) |
| Weight frameset |
1640 g frame (size XXS, incl. hanger) / 810 g fork (300 mm steerer) |
| Maximum rider weight |
90 kg incl. luggage |
| ASTM riding condition |
2 |
